Description
- High-concerned chemical: none
- Supporting Hard Drive Capacity: 16TB
- External Interface: USB
- Package: Yes
- Size: 1.8″
- Brand Name: Blueendless
- Case Material: aluminum
- Key Feature 1: Dual Bay RAID
- Key Feature 2: 2 Bay RAID
- Key Feature 3: RAID0/1/PM
- Key Feature 4: With RAID Function
- Key Feature 5: Compatible with 2230, 2242, 2260 and 2280
- Key Feature 6: M.2 SATA
- Key Feature 7: m.2 nvme ssd case
- Key Feature 8: NVME RAID enclosure

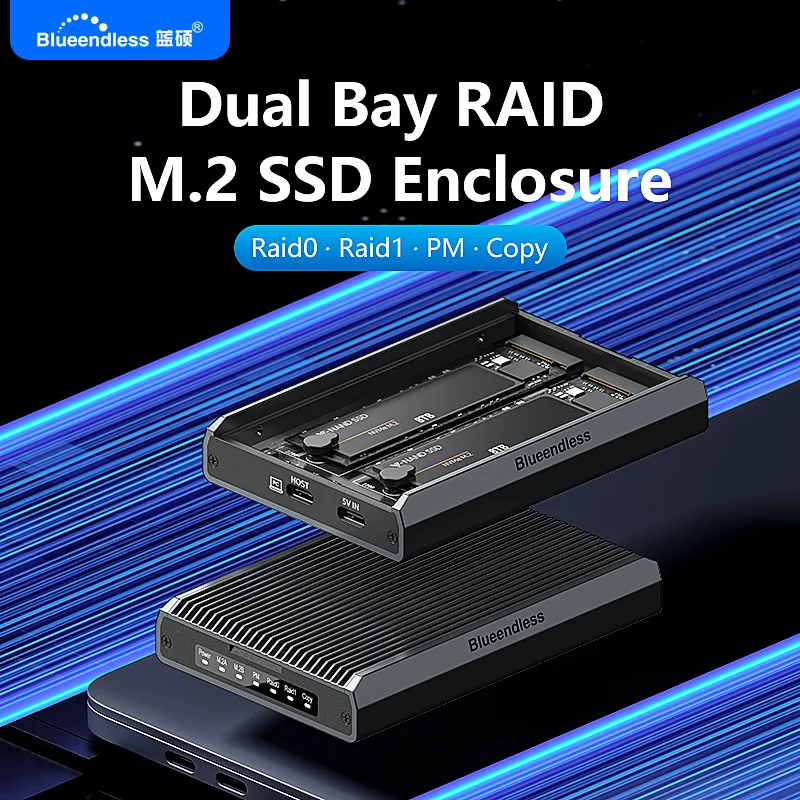

Blueendless 2 Bay RAID M.2 SATA/M.2 NVME SSD Enclosure

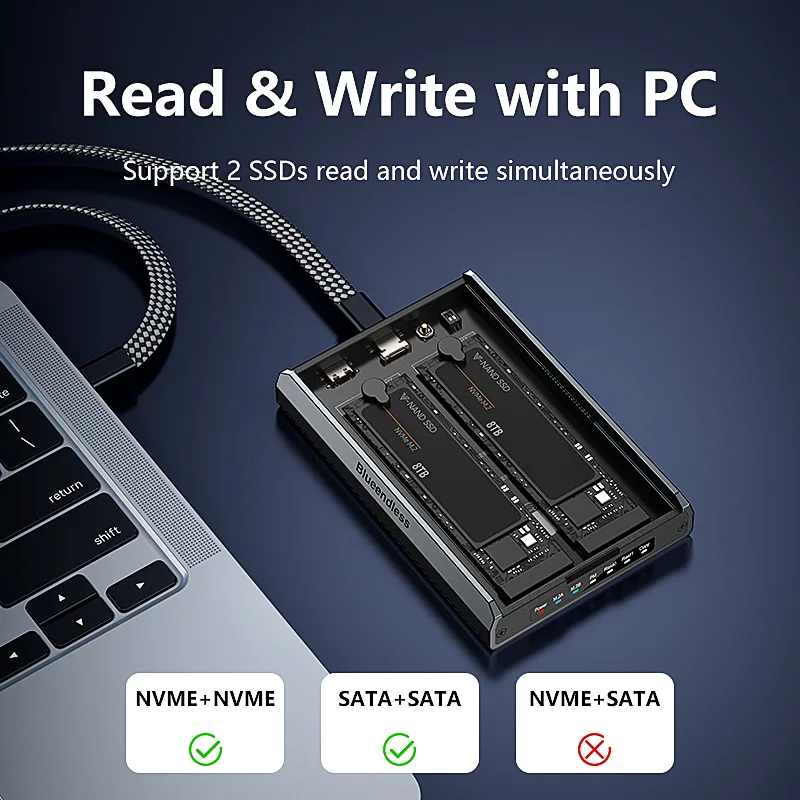

for DUAL m.2 sata ngff ssd or DUAL m.2 nvme ssd
Protocol:M.2 NVME PCIE/M.2 SATA NGFF(Not M.2 SATA&NVME)
Interface:USB C Type C

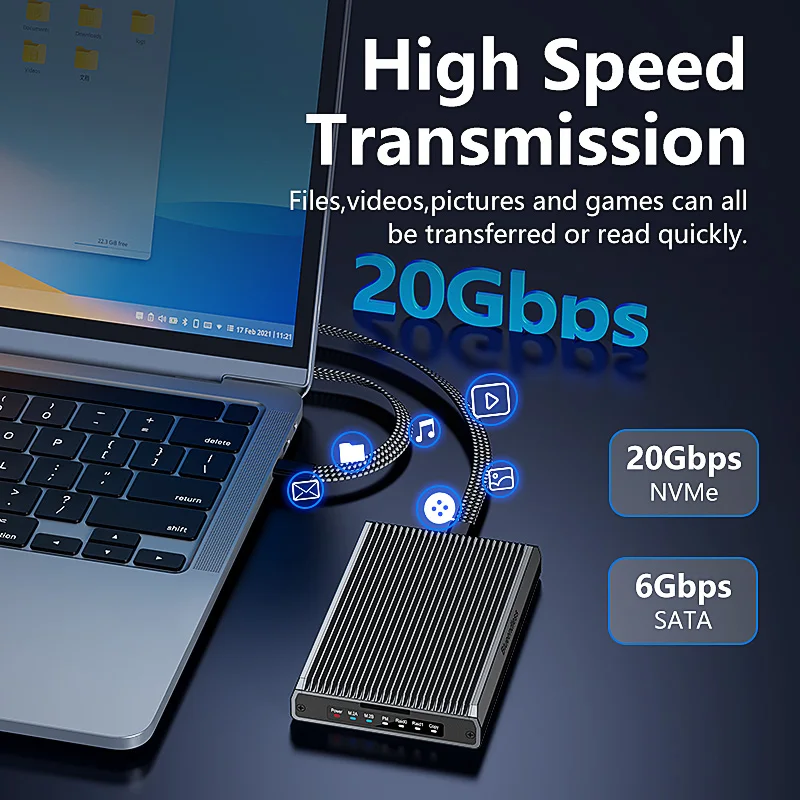

Speed:NVME 20Gbps,SATA 6Gbps
Capacity:Single 8TB,Total 16TB
SSD Size:2230/2242/2260/2280
Support System:Windows/Linux/Mac OS/Android
Intall:Tool Free

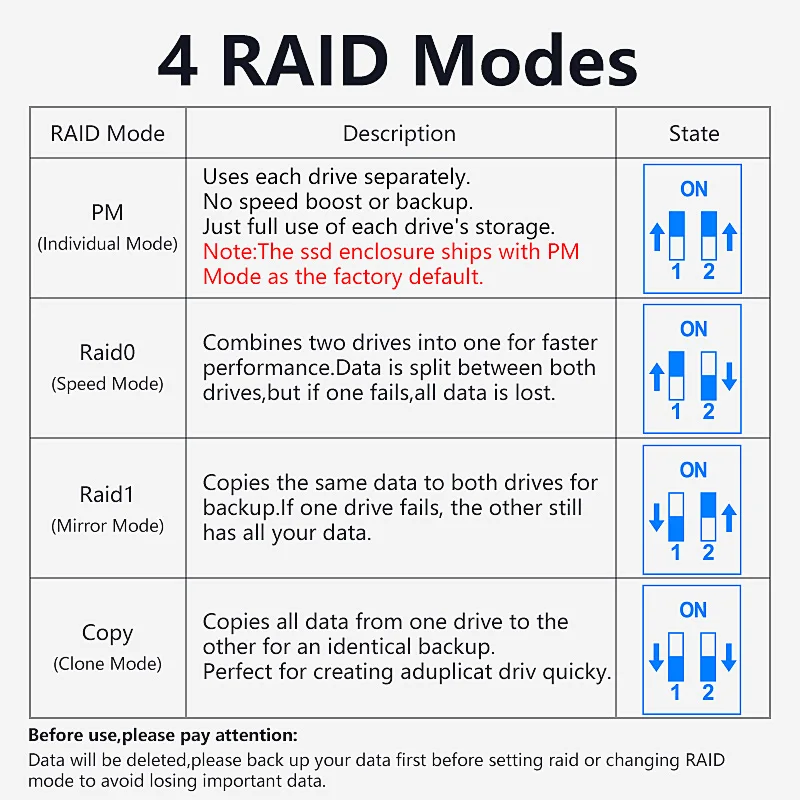

4 RAID Modes:PM/RAID0/RAID1/Copy
PM (Individual Mode):
Uses each drive separately.No speed boost or backup.
Just full use of each drive’s storage.
Note:The ssd enclosure ships with PM Mode as the factory default.
RAID 0 (Speed Mode):
Combines two drives into one for faster performance.
Data is split between both drives,but if one fails,all data is lost.
RAID 1 (Mirror Mode):
Copies the same data to both drives for backup.
If one drive fails, the other still has all your data.

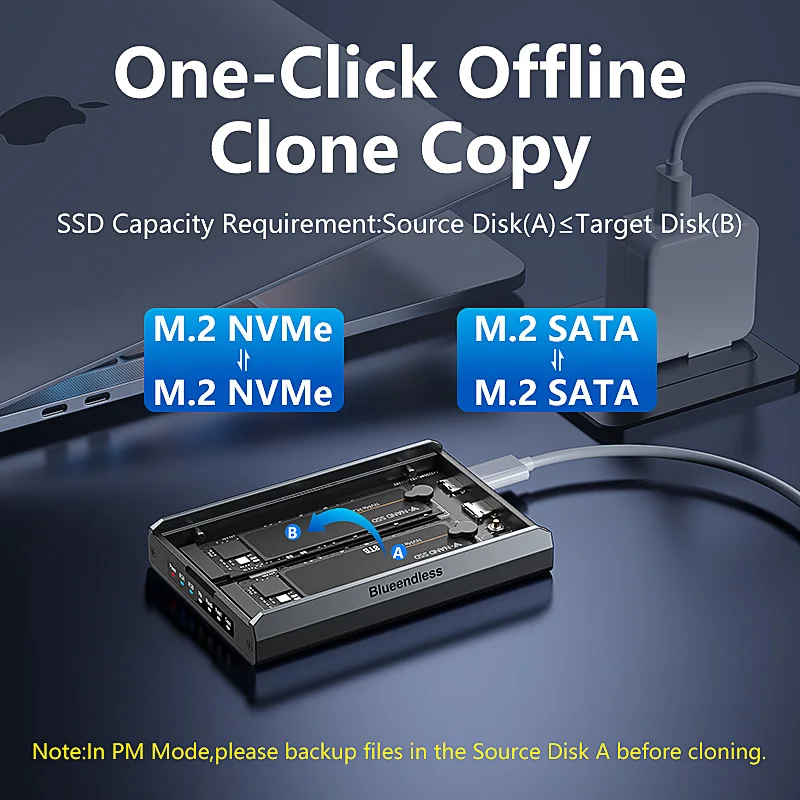

Copy (Clone Mode):
Copies all data from one drive to the other for an identical backup.
Perfect for creating aduplicat driv quicky.
Offline Clone:NVME to NVME,SATA to SATA
AliExpress Shopper (verified owner) –
Worked fine with two nvme (500 mb each), raid 0, getting 1tb total. Pretty fast when connected to a usb 3.2 gen 2 port.
AliExpress Shopper (verified owner) –
Fast and well-built. Satisfied.
AliExpress Shopper (verified owner) –
Compact and robust case, I recommend it.
AliExpress Shopper (verified owner) –
Based on the rtl9220dp chipset. supports uasp and trim. read speed is up to 1.8 gb/s at 20 gbps, 0.9 gb/s at 10 gbps, and 0.45 gb/s at 5 gbps. write speed is roughly half that. the cable is 33 cm long including the connectors, 26 cm without them. warning!!! the included hard (!!!) thermal pads are only 1.2 mm thick and do not make proper contact with the heatsink cover — be sure to buy soft 2 mm thermal pads instead. to the person who left a review from switzerland: this is a macbook issue. even the latest models do not support usb 3.2 gen 2×2 (20 gbps), despite supporting usb 4 (40 and 20 gbps).
AliExpress Shopper (verified owner) –
Thank you for the quick response and careful packaging. As for this case, it’s a very user-friendly case in a way, as it can use two M.2 NVMe or SATA SSDs and can also form a RAID 0 or 1 configuration. It’s said to be USB-C 3.2 Gen 2, so I can expect a speed of at least 10Gbps. The manual states 20Gbps, so I’m hoping for a speed of around 1.8GB per second. There’s also a replicator (copy) function, but this time I plan to use it with an external SSD (4TB x 2) in RAID 0 (striping). Thank you very much.
A***k (verified owner) –
Excellent service and a high quality product.
The ssd enclosure is as described.
Seller is very responsive and helpful.
Item arrived to israel after just 15 days.
AliExpress Shopper (verified owner) –
I’ve tried so far with a m.2 sata ssd and the function and performance is as expected. i will test the compatibility with nvme when i have a drive available. the build quality is nice, solid metal and compact design, i like it.
g***A (verified owner) –
Item as described and works perfectly well. fast shipping and delivery. good value. overall great experience, thank you!
