WLtoys XK K124 RC Helicopter – 6CH Brushless 3D/6G

The WLtoys XK K124 RC Helicopter is a compact 2.4GHz remote control helicopter designed with a highly detailed EC-145-inspired appearance and advanced flight control features. Powered by a 1106 brushless main motor and a 3.7V 700mAh Li-Po battery, the K124 combines responsive performance with selectable 3D and 6G flight modes.

This 6-channel RC helicopter features a six-axis gyroscope system, aerodynamic rotor blades, and a dedicated 2.4GHz remote controller. The 6G mode provides a more stable flight experience, while 3D mode is designed for experienced pilots who want responsive control for aerobatic flying. With its compact size and ready-to-fly configuration, the WLtoys K124 is suitable for RC helicopter enthusiasts aged 14 and above.

Key Features of the WLtoys XK K124

• EC-145-inspired design: Detailed styling based on the appearance and proportions of the EC-145 helicopter.

• 1106 brushless main motor: Provides efficient and responsive power for the main rotor.

• 3D and 6G flight modes: Switch between different flight-control characteristics according to your experience and flying requirements.

• 6-channel control: Provides control over the helicopter’s primary flight functions.

• Six-axis gyroscope: Helps provide stable flight characteristics when using the 6G mode.

• 2.4GHz remote control: Provides a reliable wireless connection between the transmitter and helicopter.

• 3.7V 700mAh Li-Po battery: Supplies power to the helicopter’s electric flight system.

• Ready-to-fly package: Includes the helicopter, remote controller, battery, charger, spare blades, tools and other accessories.

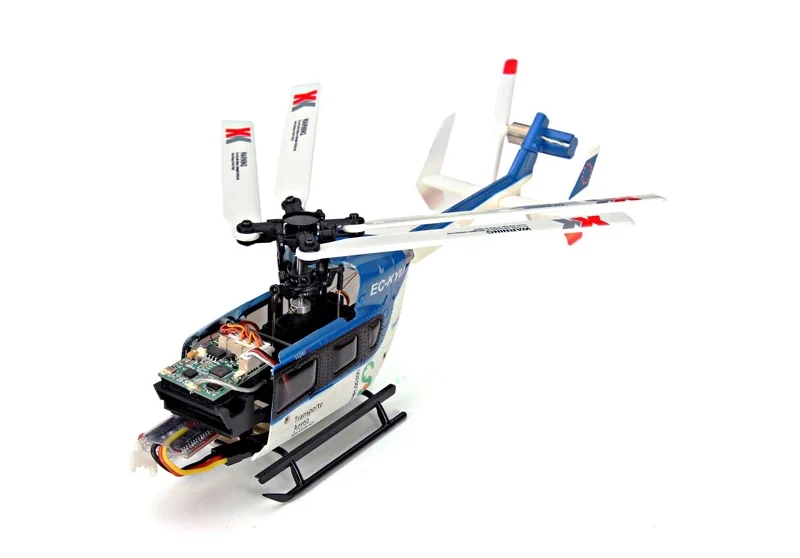

WLtoys K124 Design and Performance

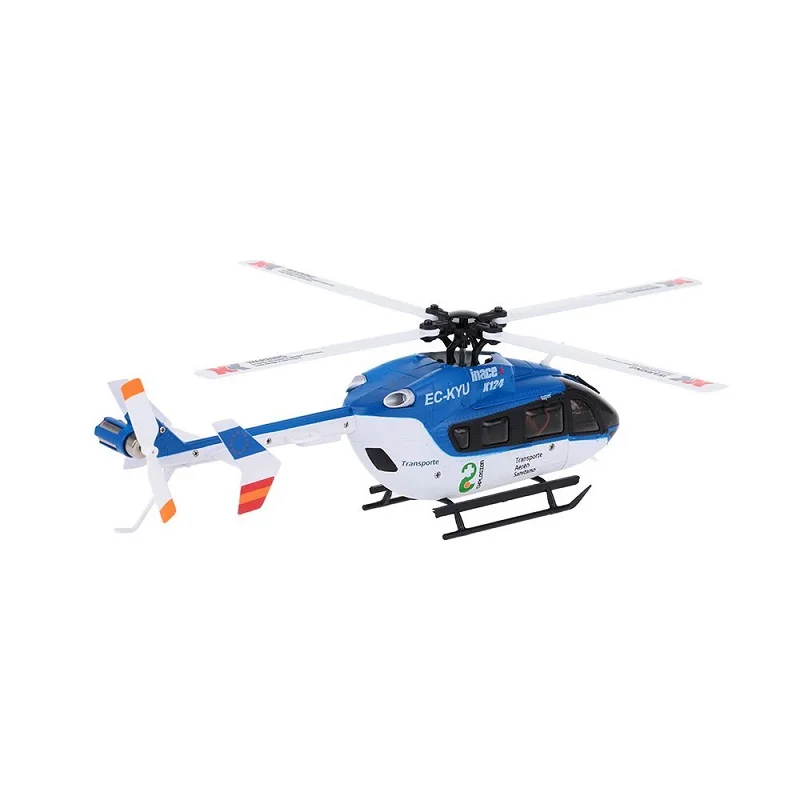

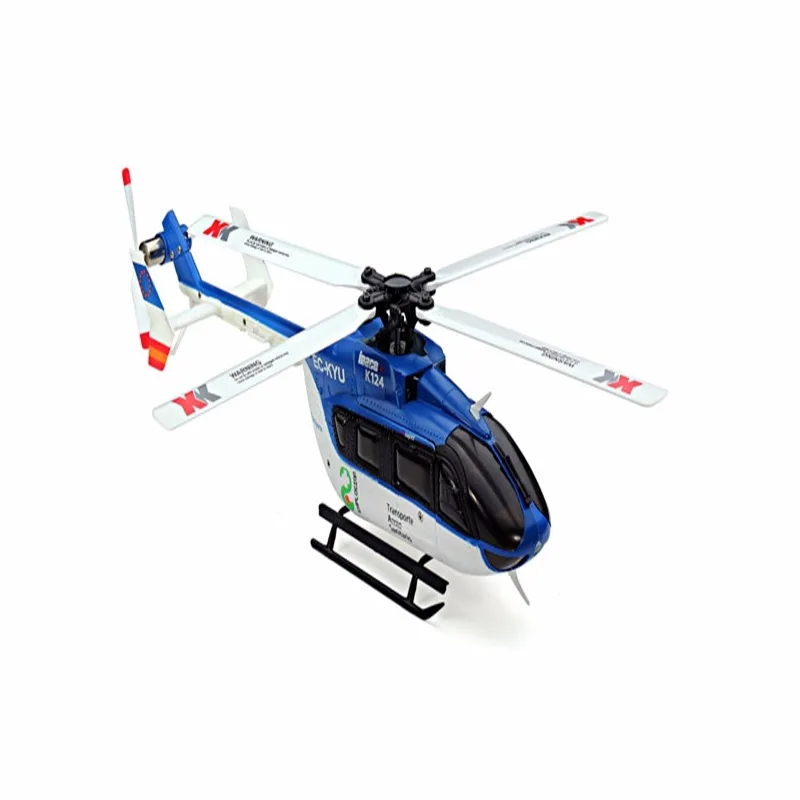

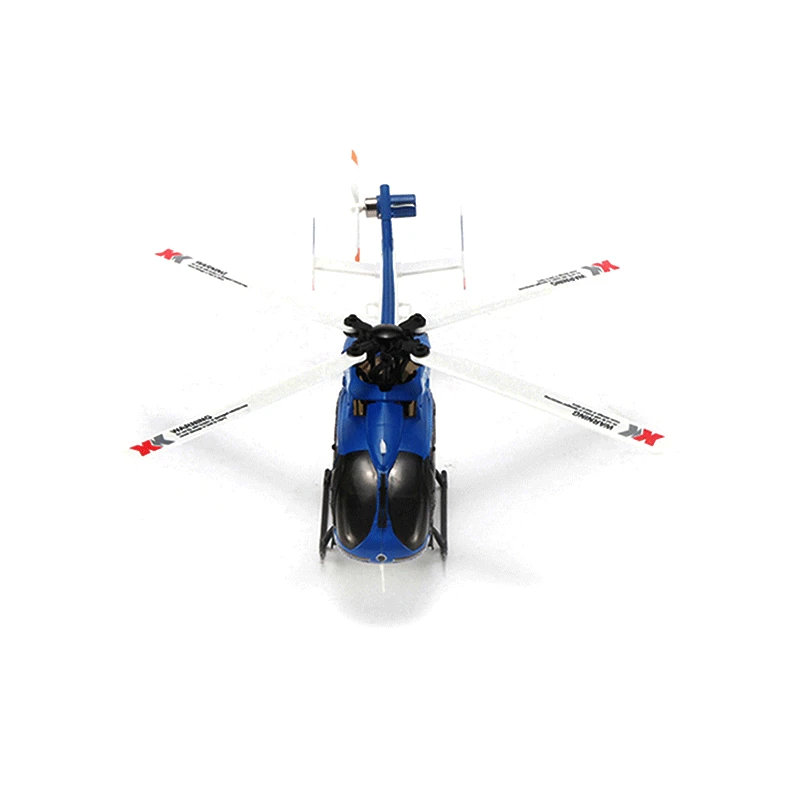

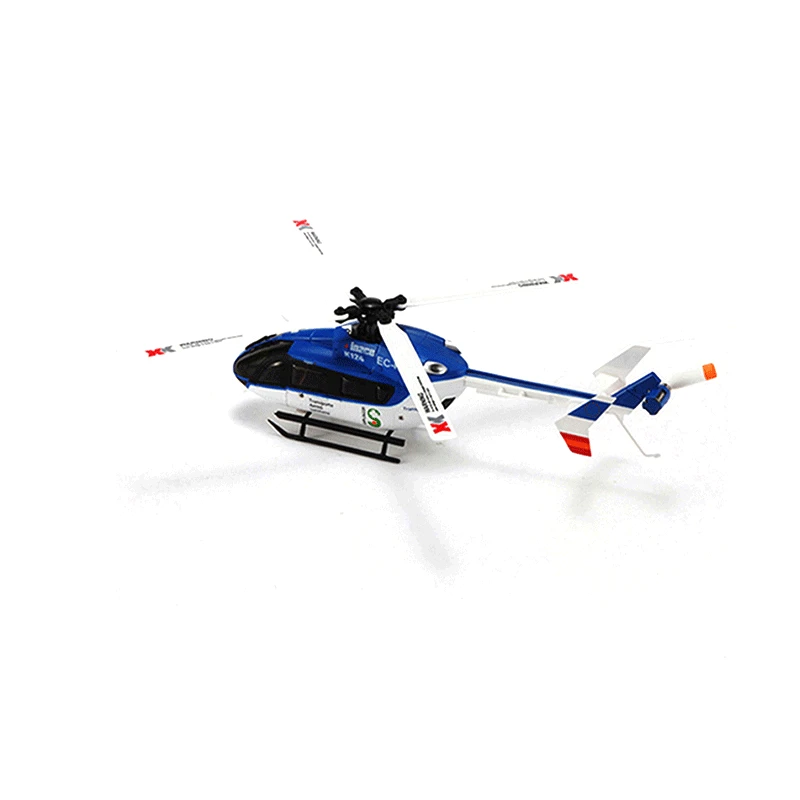

The WLtoys XK K124 features a detailed design inspired by the EC-145 real-world helicopter. Its ABS construction, four-propeller configuration and aileron design give the model a distinctive appearance compared with conventional RC helicopters.

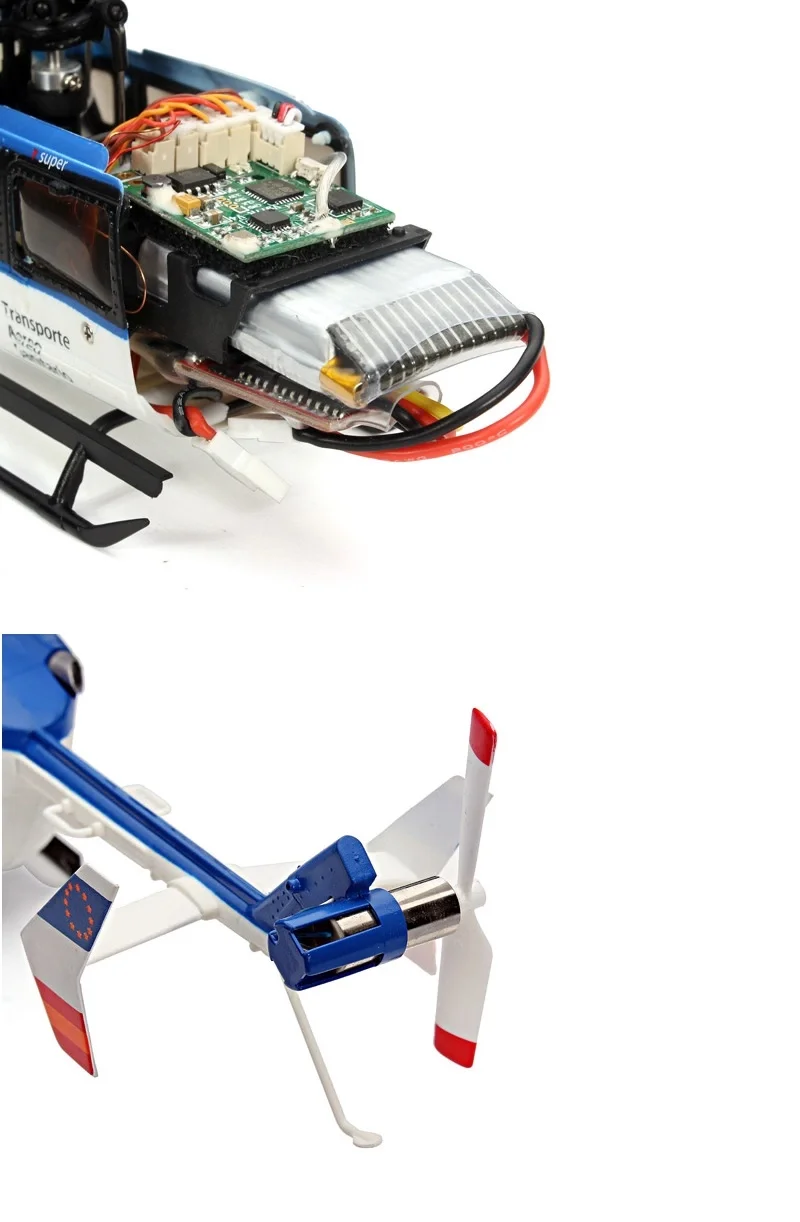

The helicopter uses a 1106 11000KV brushless main motor combined with aerodynamic rotor blades. The blade design is intended to provide effective propulsion and body stability during flight. The main rotor has a diameter of approximately 250mm, while the helicopter body measures approximately 232mm in length.

The K124 has a listed flying weight of approximately 64g for the helicopter itself. Its compact dimensions make it a relatively small RC helicopter while still incorporating a 6-channel control system and brushless main motor.

3D and 6G Flight Modes

One of the main features of the WLtoys K124 is its selectable 3D and 6G flight modes.

The 6G mode uses a six-axis gyroscope system to provide more stable flight characteristics. This mode is particularly suited to pilots who are learning to control the helicopter and want assistance with maintaining a stable flight attitude.

The 3D mode is designed for more experienced pilots. It uses a three-axis gyroscope configuration and provides a more responsive control experience for aerobatic flight. The supplied product information lists maneuvers such as rolls, inverted flight and other 3D-style aerobatic movements.

The remote controller includes dedicated switches for functions such as 3D/IDLE operation and throttle hold. It also features an LCD display and low-voltage alarm.

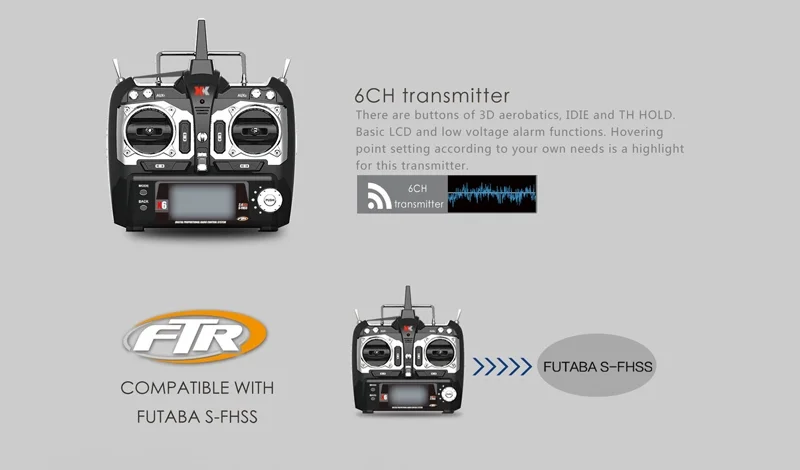

2.4GHz 6-Channel Remote Control

The K124 comes with a 2.4GHz 6-channel remote controller. The transmitter is available in MODE1 and MODE2 configurations, depending on the selected version.

The six-channel control system provides detailed control of the helicopter’s flight functions. The transmitter also includes a large LCD display, low-voltage warning and dedicated switches for important flight functions.

The listed control distance is up to approximately 150 meters, although actual operating range can vary depending on environmental and operating conditions.

The controller requires six AA 1.5V batteries, which are separate from the helicopter’s rechargeable Li-Po battery.

Battery and Charging

The WLtoys XK K124 uses a 3.7V 700mAh 25C Li-Po battery to power its electric flight system. The supplied specifications list an approximate flight time of 5–7 minutes, depending on operating conditions and flying style.

A dedicated USB charging system is included with the package. The supplied information indicates a charging time of approximately 60–90 minutes, depending on the charging setup.

The package also includes a two-port charger that can charge two batteries simultaneously when compatible batteries are available.

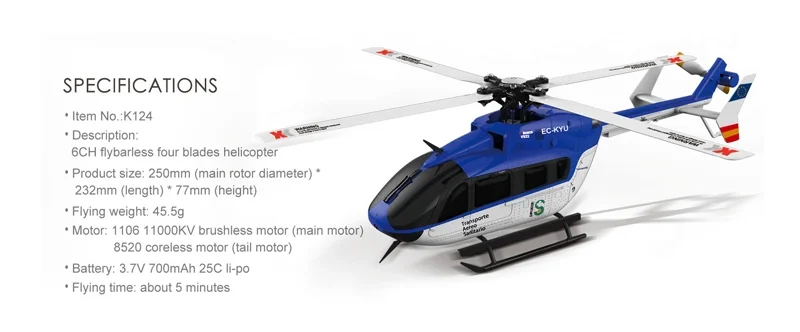

Specifications

Specification	Details
Brand	WLtoys XK
Model	K124
Product Type	RC Helicopter
Control System	2.4GHz
Channels	6CH
Flight Modes	3D / 6G
Gyroscope	3-axis / 6-axis system
Main Motor	1106 11000KV Brushless
Tail Motor	8520 Brushed
Battery	3.7V 700mAh 25C Li-Po
Flight Time	Approximately 5–7 minutes
Charging Time	Approximately 60–90 minutes
Blade Diameter	250mm
Body Length	232mm
Tail Rotor Diameter	57mm
Helicopter Weight	Approximately 64g
Remote Control Range	Up to approximately 150m
Remote Controller	6CH 2.4GHz
Controller Battery	6 × AA batteries
Recommended Age	14+
Assembly	Ready-to-Go
Material	ABS/Plastic

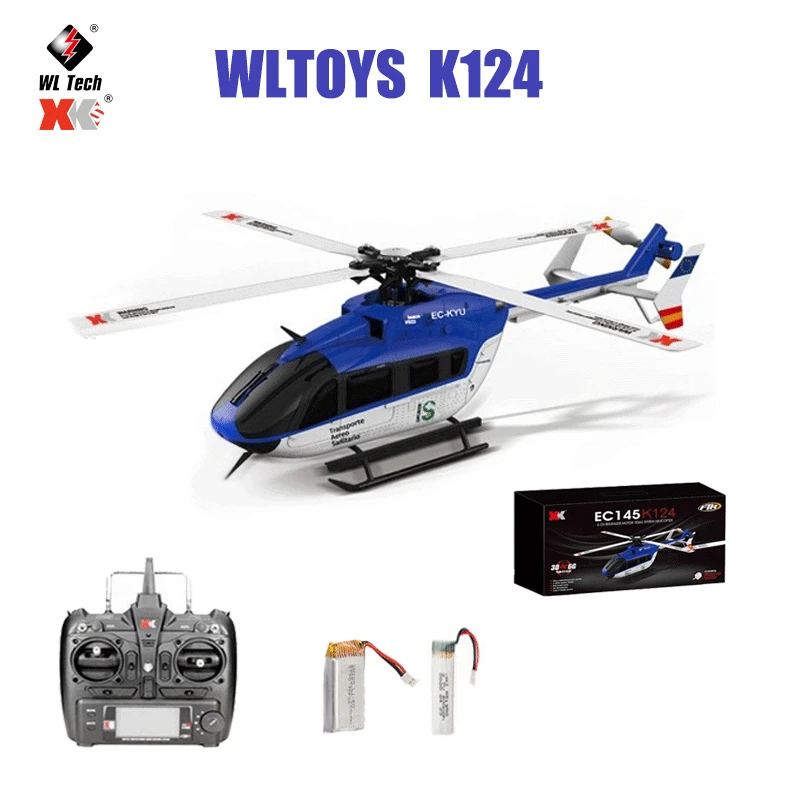

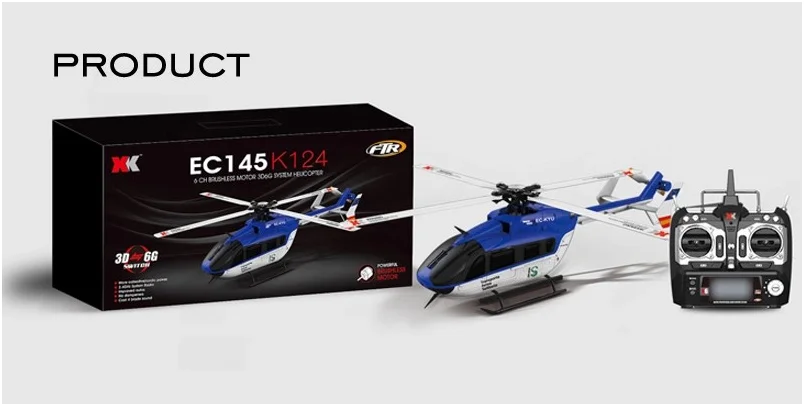

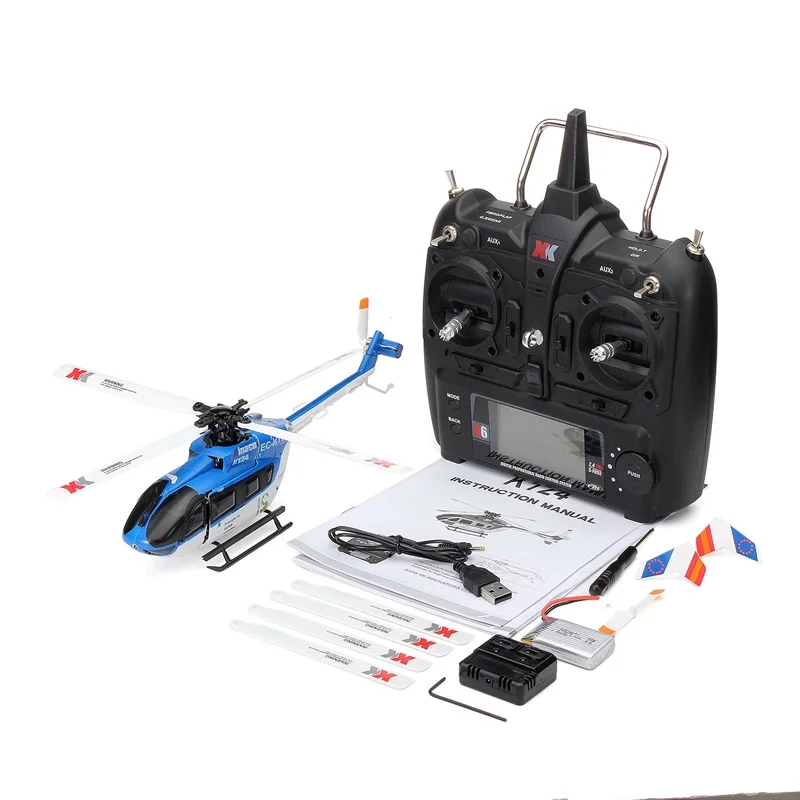

What’s Included

The WLtoys XK K124 package includes:

• 1 × WLtoys K124 RC Helicopter

• 1 × X6 2.4GHz Remote Controller

• 1 × 3.7V Li-Po Battery

• 5 × Spare Blades

• 1 × Spare Main Gear

• 1 × Tool

• 1 × Two-Port Charger

• 1 × USB Cable

• 1 × Cross Screwdriver

• 1 × English Manual

• 1 × Original Box

Why Choose the WLtoys XK K124?

The WLtoys XK K124 RC helicopter combines a detailed EC-145-inspired design with a brushless main motor, 6-channel control and selectable 3D and 6G flight modes. Its six-axis stabilization system provides a more controlled flying experience in 6G mode, while the 3D mode offers responsive controls for experienced RC helicopter pilots.

With its included 2.4GHz transmitter, rechargeable Li-Po battery, USB charging equipment and spare components, the K124 package provides the main equipment needed to begin flying. The combination of scale-inspired styling and advanced flight-control functions makes the K124 an interesting option for RC helicopter enthusiasts.

Frequently Asked Questions

Is the WLtoys K124 a 6-channel RC helicopter?

Yes. The WLtoys K124 uses a 6-channel 2.4GHz remote control system.

What battery does the WLtoys K124 use?

The K124 uses a 3.7V 700mAh 25C Li-Po battery.

How long can the WLtoys K124 fly?

The listed flight time is approximately 5–7 minutes. Actual flight time can vary depending on flying conditions and control usage.

Does the WLtoys K124 have 3D and 6G modes?

Yes. The K124 supports both 3D and 6G flight modes. The 6G mode uses six-axis stabilization, while the 3D mode is designed for more responsive aerobatic control.

What is included with the WLtoys K124?

The package includes the K124 helicopter, 2.4GHz remote controller, Li-Po battery, charger, USB cable, spare blades, spare main gear, tools, screwdriver, English manual and original box.
